Fort Knox Gold

Fairbanks, Alaska

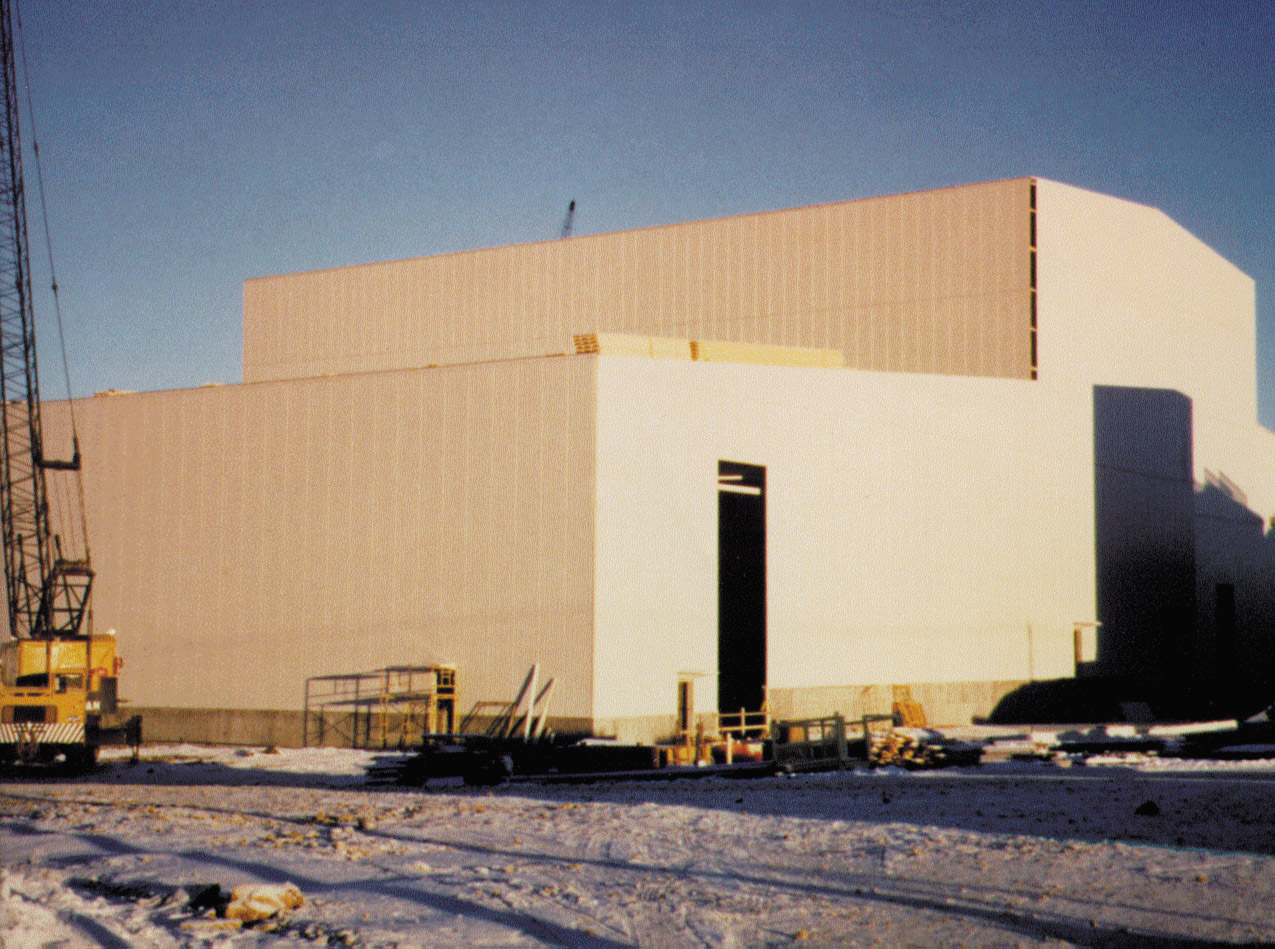

TIC was the general contractor of a 36,000 TPD gold mill in the heart of Alaska, utilizing conventional crushing, grinding, CIL leaching, carbon stripping and electrolytic recovery process.

TECHNICAL DETAILS

• Two each 20’ x 30’ Svedala ball mills with 7,000 hp synchronous motors
• One 34’ x 15’ Svedala SAG mill with dual 6,000 hp synchronous motors
• One 60” x 102” Nordberg Gyratory crusher
• Four 72” x 20” apron feeders
• One 54” x 2,500’ 800 hp overland conveyor and one 54” X 1,000’ 350 hp mill feed conveyor
• 80,000 lf of piping, 510,000 lf of cable, 38,200 terminations
